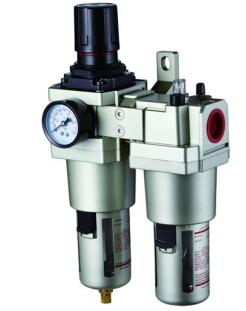

AC4010-04 AC3010-03 宁波市开源气动工程有限公司 空气过滤器 BFC4000 AFC2000

保证耐压力Ensured Pressure Resistance

1.5Mpa(15kgf/c㎡)

最高使用压力Max.Working Resistance

1.0Mpa(10kgf/c㎡)

环境及流体温度Ambient and Fluid Temperature

5-60℃

过滤精度Filter Precision

25μm

建议用油Recommended Oil User

透平1号油(VG32)Turbine NO.1 Oil ISO(VG32)

容量材料Container Material

聚碳酸酯Polycarbonate

防护罩Protective Cover

AC2500-5000(有)Available only for AC2500-5000

调压范围Pressure Regulating Range

AC1000:0.05-0.7Mpa(0.5-7kgf/c㎡)
AC2000-5000:0.05-0.85Mpa(0.5-8.5kgf/c㎡)

阀型Valve Type

带溢流型With Overflow

型号

Model

规格Specification

配件/Accessories

组件/Assembly

额定流量

Rate Flow

（L/min）

接管口径

Port Size

（G）

压力表口径

PressureGaugePort Size (G)

重量Weight

(kg)

托架Bracket

(2个)

压力表
Pressure Gauge

过滤器
Filter

减压阀
Regulator

油雾器

Lubricator

AC1000-M5

AF1000

AR1000

AL1000

90

M5*0.8

1/16

0.26

Y10L

G27-10-R1

AC2000-01

AF2000

AR2000

AL2000

500

1/8

1/8

0.74

Y20L

G36-10-01

AC2000-02

1/4

AC2500-02

AF3000

AR3000

AL3000

1500

1/4

1/8

1.04

Y30L

AC2500-03

3/8

AC3000-02

AF3000

AR4000

AL3000

2000

1/4

1/8

1.18

Y30L

AC3000-03

3/8

AC4000-03

AF4000

AR4000

AL4000

4000

3/8

1/4

2.14

Y40L

G46-10-02

AC4000-04

1/2

AC4000-06

AF4000-06

AR4000-06

AL4000-06

4500

3/4

1/4

2.47

Y50L

AC5000-06

AF5000

AR5000

AL5000

5000

3/4

1/4

3.82

Y60L

AC5000-10

1

型号Model

口径
PortSize G

A

B

C

D

E

F

G

H

J

K

L

M

N

P

AC1002

M5

91

84.5

25.5

25

26

25

33

20

4.5

7.5

5

17.5

16

38.5

AC2000

1/8-1/4

140

125

38

40

56.8

30

30

24

5.5

8.5

5

22

23

50

AC2500

1/4-3/8

181

156.5

38

53

60.8

41

64

35

7

11

7

34.2

26

70.5

AC3000

1/4-3/8

181

156.5

38

53

60.8

41

64

35

7

11

7

34.2

26

70.5

AC4000

3/8-1/2

238

191.5

41

70

65.5

50

64

40

9

13

7

34.2

33

88

AC4000-06

3/4

253

193

40.5

70

69.5

60

89

40

9

13

7

46.2

36

88

AC5000

3/4-1

300

271.5

48

90

75.5

69.5

105

50

12

16

10.5

55.2

40

115
