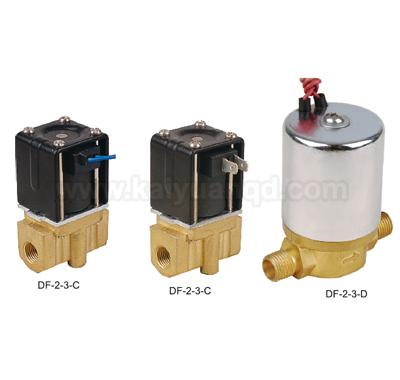

型号/model
|
df2-3-b
|
df2-3-c
|
|
口径/bore
|
m10x1 g1/8 g1/4
|
m10x1 g1/8
|
|
使用介质/working medium
|
中性气体、水、油、工艺真空
neutral gas, water ,oil ,and technological vacuum
|
|
型式/type
|
直动型常关螺纹式/direct acting nomal close thread type
|
|
流量孔径/aperture of flow rate
|
3mm 4mm
|
2mm 3mm
|
|
使用压力/working pressure
|
水、油/water oil:0～0.7mpa 气体/gas:0～10mpa
|
|
环境温度/ambient temperature
|
-20oc～50oc
|
|
标准电压/standard voltage
|
ac24v 36v 220v dc 12v 24v 36v
|
|
|
交流/ac 50hz 60hz
|
|
电压范围/voltage range
|
85～110%
|
|
绝缘电阻/insulation resistance
|
≥20mω
|
|
绝缘等级/insulation grade
|
b级<130oc(温升）grade b<130oc(temperature rise)
|
|
本体材质/material of body
|
铝、 锌合金、黄铜/aluminum, zine alloy, brass |
